Deployment Options

  • Updated

Deployment overview

Wire allows you to choose from a variety of backend installations. For the turnkey deployment options, our current customers use Wire backend deployed on Wire infrastructure. But for compliance reasons, some customers can also choose Wire backend to be deployed on their cloud or private backend infrastructure.

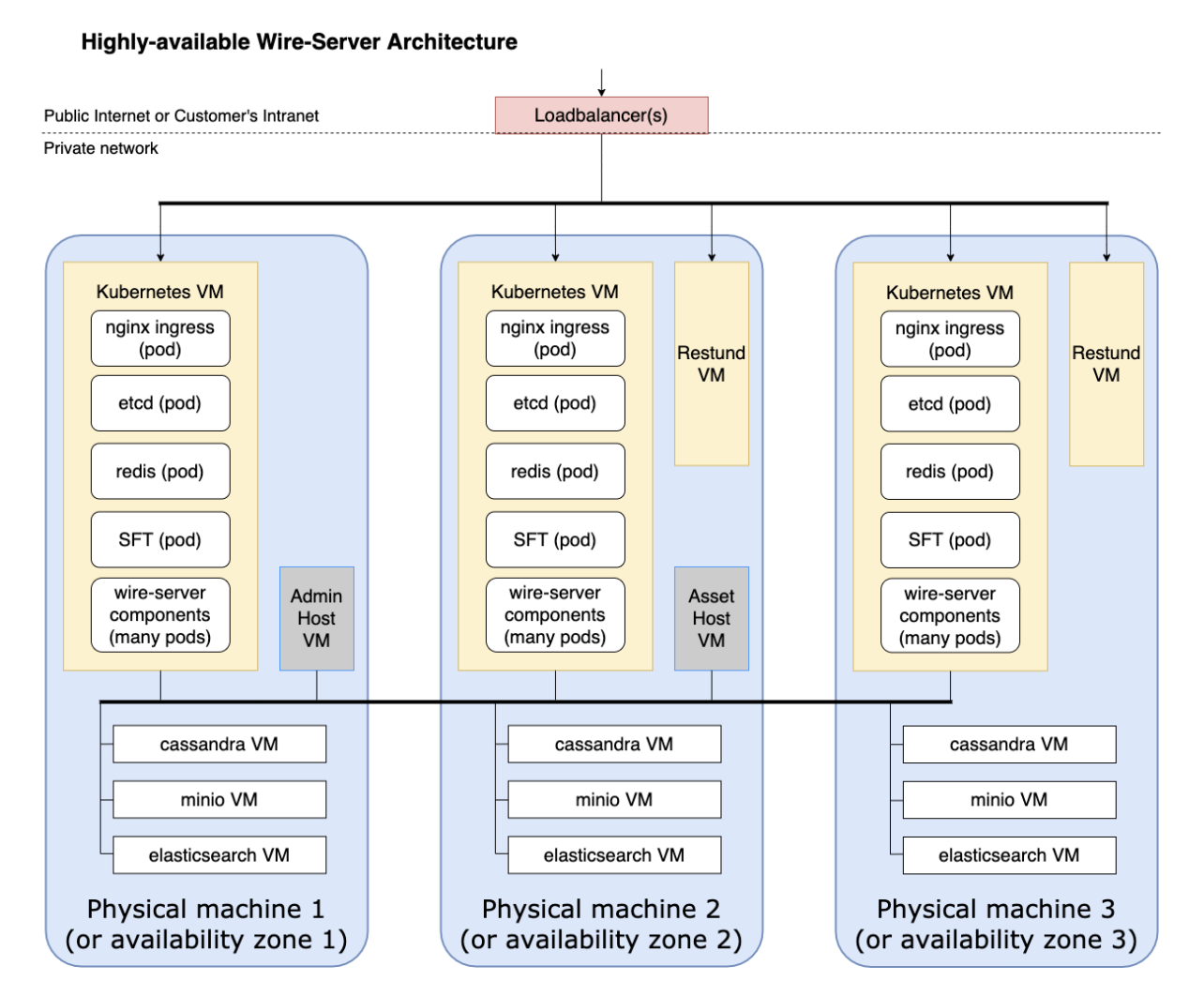

Sample backend architecture


Deployment scenarios

Customers use different ways of deployments. Wire supports the following combinations in various scenarios.



Setup

App

Backend

Recommended situation

Public Wire App

+ Wire Cloud

Public Wire App

Wire Cloud

For all cloud users, without the need for customization. The easiest version to roll out.

Public Wire App

+ Custom On-Prem

Public Wire App*



* Wire for web is limited to the version installed with custom on-prem backend.

Custom On-Prem

Data sovereignty needs an on-prem backend, with no requirements for customization of clients.

Custom Wire App + Custom On-Prem

Custom Wire App (Built by Wire)

Custom On-Prem

When your employees don´t have access to the internet or you need to customize the application.

Custom Wire App + Wire Cloud

Custom Wire App (Built by Wire)

Wire Cloud

You need to customize the application, for example, changing the UI. We recommend using Apple Business Manager for your custom Wire iOS App.

White-label is possible.

Contact us for more info.

Custom Wire functionality (via APIs, SDK)

+ Wire Cloud

Not fully supported, please contact us.

Wire Cloud

For native integration of Wire capabilities, and extending Wire.

If your organization has other needs, contact sales@wire.com.



Backend installation / deployment

The Wire backend can be deployed “into the cloud” (IaaS / SaaS), on-premise with World Wide Web connectivity, or in an offline environment. The installation of Wire in an offline environment creates a new “island” of Wire users specific to that individual installment. The offline approach offers advantages in terms of privacy and security. However, it creates complications in processes related to the installation, updating the Wire software, and applying patches and updates to the software components used to support Wire (for example, Kubernetes, Ubuntu/Debian, Docker, Cassandra, MinIO).



Scaling users and conferencing capabilities

Wire supports cloud and on-premises installations of its backend. The sample architecture diagram above is designed to support a couple of thousand messaging (chat, IM) users (however, the setup may vary for organizations having different traffic patterns).
The guidelines below include scaling recommendations for supporting many conference call participants. Wire’s technical team can help you and your tech team with more information on your scaling needs. We can customize Wire’s backend system to meet your exact requirements.



Name

Amount

CPU Cores

Memory

Disk Space

Cassandra

3

2

4 GB

80 GB

MinIO

3

1

2 GB

400 GB

Elasticsearch

3

1

2 GB

60 GB

Kubernetes3

3

8 GB

40 GB

Restund4

2

1

2 GB

10 GB

Per-Server Totals

-

11 CPU Cores

18 GB Memory

590 GB Disk Space

Admin Host2

1

1

4 GB

40 GB

Asset Host2

1

1

4 GB

100 GB

Per-server Totals with Admin- and Asset Hosts

-

13 CPU Cores

26 GB Memory

730 GB Disk Space



Desktop and mobile apps distribution

Wire has publicly available mobile apps on both Google Play and Apple App Store. You can download the desktop applications directly on the Wire website. These apps are configured to work with the Wire cloud infrastructure by default but can be reconfigured to work with your private Wire infrastructure.
However, if you have your own EMM/MDM, you can take control of your app distribution. For disabling or enabling certain features as part of the distribution, you can set these settings in the team management console. For desktop and Android, Wire can also provide pre-compiled binaries that can be stored and downloaded from your servers.



Upgrades and updates

Wire provides update packages for customers to get their on-premises instance of Wire up-to-date. Wire will package and deliver updates to the Wire backend as part of a once per 6-month refresh cycle. However, the cadence of critical bug and security vulnerability fixes is determined independently of the 6-month cycle, with the shortest supportable deployment cycle.



Other deployment considerations

Calling ports for on-premises

For the highest reliability and quality Wire recommends allowing direct connectivity via UDP ports, but Wire also provides TURN servers to relay calls using UDP, TCP, or TLS.
Find more information



Push notifications for on-premises

For all push notifications for custom clients on the custom Wire backend, you can choose from the following options:

  • Option A: Proxy push notification through Wire AWS SNS architecture
  • Option B: Customer builds out their own AWS SNS architecture
  • Option C: No Push notifications; customer only uses WebSockets (supported by desktop apps and Android apps, but not iOS apps)



Conferencing bandwidth

Wire recommends a minimum of 1GbE networking for conferencing servers. To better understand bandwidth requirements for your specific needs, read the following guidelines for estimation.

Single sign-on (SSO) and SCIM (System for Cross-domain Identity Management)

Wire supports SSO and SCIM for easier user onboarding and adoption. For more details, read this documentation about SCIM, and this overview about SSO.

All guidelines in this document are looked at from a conferencing server point of view. For bandwidth requirements on the client-side, read about bandwith requirements.

  • 1 audio media stream is received per participant of a conference
  • Up to 5 audio media streams are sent to every participant in calls with more than 5 participants. For conferences with fewer participants, up to n audio media streams are sent to every participant (n equals the number of participants).
  • 1 video media stream is received per participant of a conference
  • Up to 9 video media streams are sent to every participant of a conference of 9 or more participants. For a conference call with fewer participants, up to (n-1) video media streams are sent to every participant (n equals the number of participants).
  • An audio media stream may use up to 50kbps
  • A video media stream may use up to 350kbps
  • The total bandwidth requirement depends on the number of concurrent conferences and the estimated number of participants per conference during peak times
